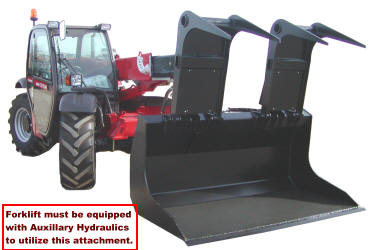

HD Root Grapples & Grapple Buckets
for "extendable reach" forklifts









  • Designed Specifically for Extendable-Reach Forklifts
  • Extra Large Grapple Capacity - Heavy Duty Construction
  • Bucket Shell - ¼" steel Plate
  • Grapple Tines - ½" T-1 Steel (100,000 psi min yield)
  • Bucket Sides - ½" T-1 Steel (100,000 psi min yield)
  • Covers to protect Hydraulic Cylinders
  • Welded Hydraulic Cylinders - 2½" bore X 8" stroke, 3000 psi, chrome rods
  • 3000 psi Hydraulic Hoses (Quick-disconnects Not Included)
  • Grease Zerks at all pivot pointsSkidsteer Attachment
  • Grapple Pins 1¼" chrome plated stress-proof steel (100,000 psi min yield)
  • Hydraulic Cylinder Pins - 1" chrome plated stress-proof steel (100,000 psi min yield)
  • ¾" X 6" Punched Blade - (Bolt-On-BladeOptional)



Specify make and model of forklift for compatible quick-tach



ROOT GRAPPLES AND GRAPPLE BUCKETS

Pictures of *New Product "Root Grapples" will be added soon.

Standard Features:

  • Covers provided to protect Hyd Cylinders and Cylinder Rods
  • Hoses Routed in enclosed tube for protection
  • Grease Zerks and bushings at all pivot points
  • Zerk Fittings Protected with Raised Rings
  • Cutting Edge Punched for Bolt-On Blade



TELEHANDLER
GRAPPLE BUCKETS &  ROOT GRAPPLES
Specifications:
Model 1972RG
72"
Telehandler
Heavy Duty

Root Grapple
Model 1972EC
72"
Telehandler Economy
Grapple Bucket
Model 1972
72"
Heavy Duty
Telehandler
Grapple Bucket
Model 1995
95"
Heavy Duty
Telehandler
Grapple Bucket
Width I.D. 72" 72" 72" 95"
Grapple Opening 42 3/4"  45" 56.5" 56.5"
Grapple Capacity 0.75 cyd. 0.9 cyd. 1.5 cyd 2.0 cyd.
Bucket Capacity
(with end plates)
NA 0.6 cyd 1.0 cyd 1.4 cyd
Depth 42" 39" 40.75" 40.75"
Bucket Back Height 19" 19" 21"
Bucket  Bottom 1/4" Plate 1/4" Plate 1/4" Plate 1/4" Plate
Bucket Back 3/16" Plate 3/16" Plate 1/4" Plate 1/4" Plate
Bottom Wear Protection 1/2" Ribs 1/2" Ribs 1/2" X 3" 1/2" X 3"
Grapple Thickness 9/16" 9/16" 1/2" T-1 1/2" T-1
Cutting Edge NA 1" X 8" 3/4" X 6" 3/4" X 6"
Tine Thickness 1/2" NA NA NA
Tine Height 5" NA NA NA
HD Welded Hyd Cylinders 2"X10"X1.25" 2"X10"X1.25" rod 2.5" X 8" X 1.5" Rod 2.5" X 8" X 1.5" Rod
Hyd Hoses &
Flat Faced Couplers
Hoses only
 included
Hoses only
 included
Hoses only
 included
Hoses only
 included
Empty Weight 1090 lbs. 1135 lbs. 1290 lbs. 1475 lbs.
Price Call For Pricing
