• Reach over or under obstructions
   to place heavy load

• Set equipment on the roof or elevated decks

• Reach through narrow openings such as a window to set or pick up a load

• Load/unload trucks easier and  more safely

• Reach into motor freight vans to unload or load materials and equipment

• Load, move and handle equipment in your equipment yard

• Reach over scaffold to set stone or other heavy masonry units

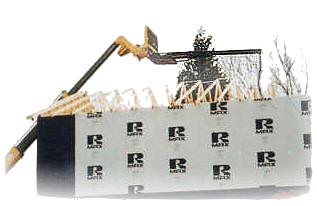

• Hang trusses and laminated wood
  beams

• Telescoping two section tubular steel boom

• Maximum load capacity full retracted: Model 1340 - 4000 lbs.  Model 1360 - 6000 lbs.

• Manually telescopes from 6' 9" to 12' 0" in 7"  increments

• Pull spring loaded pin to telescope - release
  pin and boom locks at desired extension

• Boom extension is designed so it can not be pulled all the way out

• Heavy Duty Chain and grab hook secure jib to forklift carriage

• Slip on the forks design with fork pockets 7 1/2" wide X 3 1/2" high - fork pockets are 24" On Center

Price - $1,650

Price - $1,790

Load Chart

Load Chart

1

4000 lbs.

1

6000 lbs.

3

3235 lbs.

3

4850 lbs.

5

2715 lbs.

5

4070 lbs.

7

2335 lbs.

7

3505 lbs.

9

2050 lbs.

9

3080 lbs.

Capacities shown are for jib only and do not reflect lift capacity of forklift.
