Forklift Lift-n-Tow Attachment

Model 1390B - $690

  • Universal Fit - Slips on the Forks
  • 4,000 lbs.      - Max. lift capacity on Swivel Hook
  • 2,000 lbs.*    - Max. lift capacity on Receiver/Jig
  • 10,000 lbs.*  - Max. gross towing weight
  • 220 lbs.         - Empty Weight w/o Adapter and Hitch
  • Accepts up to 6" wide forks
  • Chain & Hooks secures Lift-N-Tow to forklift
  • Overall length - 54" (w/o adapter)

    *CAUTION
    : Do not exceed capacity of selected Adapter and Hitch


Change easily from Ball, to Pintle, or Combination Hitch
Receiver/Jib accepts Standard 2" Trailer Adapter
Lift-N-Tow & Hitches Sold Separately

hitch

#1391 ADAPTER with 2" Ball - $65

Max. Vertical Lift
Max. Gross Towing Weight
Horizontal Center of Gravity
Weight with 2" Ball
-600 lbs.
-6,000 lbs.
-28"
-230 lbs.

forklift attachment
#1393 ADAPTER with COMBO HITCH - $135

Max. Vertical Lift
Max. Gross Towing Weight
Horizontal Center of Gravity
Weight with Combo Hitch
-2,000 lbs.
-10,000 lbs.
-30"
240 lbs.

telehandler attachment
#1392 ADAPTER with PINTLE HITCH - $110

Max. Vertical Lift
Max. Gross Towing Weight
Horizontal Center of Gravity
Weight with Combo Hitch
-2,000 lbs.
-10,000 lbs.
-29"
235 lbs.
lift load Tow

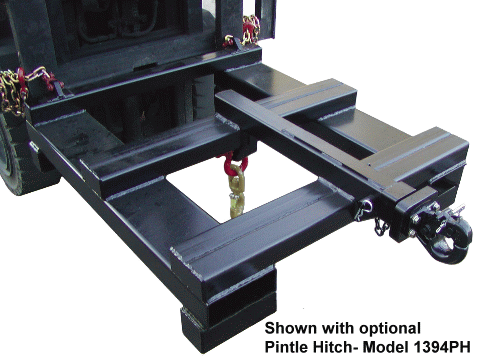

Super Duty - Model 1395B - $1,295

  • Receiver/Jib accepts 2½" Trailer Adapter
  • 16,000 lbs. Maximum Gross Towing Weight
  • 3,000 lbs. Maximum Tongue Weight
  • 10,000 lbs. Max. Lift Cap. on Swivel Hook
  • Accepts Forks up to 8" wide x 2¾" thick
  • Overall Dims. (w/o adapter) - 44" W x 14" H x 54" L
  • Weight (w/o adapter) - 400 lbs

    *CAUTION
    : Do not exceed capacity of selected Adapter and Hitch
