Steel Dock Boards



Steel Dock Boards provides a safe ramp for heavy-duty loading dock applications. Our fully welded Steel Dock Boards are designed to assist you in loading and unloading freight with a forklift at your loading dock. Our dockboards feature all-welded steel construction and capacities from 15,000 to 40,000 pounds.



Selecting the proper dock board product for your application will improve product life, safety, and loading dock efficiency. Review the Dock Board Selection Guide prior to ordering to ensure your product selection is correct.



All steel dock boards below are manufactured and tested in compliance with ANSI Standard MH30.2.

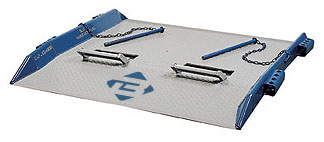

Steel Dock Board (T)



  • All-welded steel construction
  • Capacities from 15,000 to 40,000 pounds
  • Two four-hole pin pockets placed on each edge
  • Fold-down lifting loops
  • Double-bend design



This heavy-duty steel dock board is held in position using two 1" stress-proof steel pins. When properly placed in the side pocket location holes, these pins hold the dock board firmly in place guarding against slippage. Simply select the proper pin hole location for use with conventional, refrigerated, or container trailers, or for below dock conditions. Widths from 60" to 84".



Steel Dock Board (TFL)



Same basic design as the "T" dock boards but uses locking legs in lieu of steel pins.



NOT RECOMMENDED FOR BELOW DOCK LOADING.



Steel Dock Board (TFL-SB)



Speedy Board



"T" Designed board with the "fix leg" option. Add the "Speedy-BoardTM" option for fork cutouts on the leading edge of the board. This allows your driver to "scoop" the board and move into place as well as retrieve for storage when the job is done. All of this WORK is done without leaving the safety of the forktruck cage.



**SB Option can be added to TFL, TNB and SC boards at no charge.



NOT RECOMMENDED FOR BELOW DOCK LOADING.



Steel Dock Board (TNB)



Single-bend dock board design utilizes the lifting chain and full width locking legs.



NOT RECOMMENDED FOR BELOW DOCK LOADING.

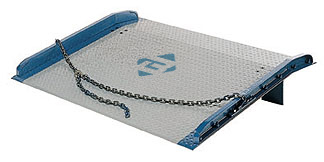

Steel Dock Board (SC)



  • All welded steel construction
  • Lifting chains included
  • Capacities of 10,000 & 13,000 pounds



This economical steel dockboard with all welded steel curbs, locking legs and lifting chains is designed for use with 3,000 pound forklift (10,000# model) and 4,000 pound forklift (13,000# model). Available in widths of 60" & 72".

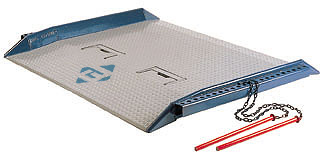

RedPin Steel Dock Board (C)



  • For difficult trailer-to-dock positions
  • Dual-pin locking system
  • All-welded steel construction
  • Capacities from 15,000 to 40,000 pounds



The red pin dockboard utilizes full length side pockets along with two locking pins for each side. These pins provide safe loading conditions for container and park - out applications. Widths from 60" to 84". Lengths from 48" to 96".
