Our attachments are ordered for your specific machine. Please call for prices.

<Back to Sales Menu

Truss Boom


Expand the Capabilities of your Forklift

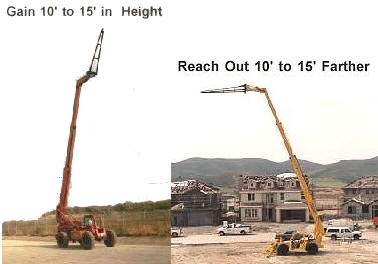

QT Truss Boom Reach Farther
Truss Boom
Telehandler Attachment Lift Higher
Forklift Attachment Save Money

Gain the Advantages of Star "QT" Truss Booms

Save the Cost of a Crane...
Your forklift and a Star QT Truss Boom can replace a crane on many "low rise" jobs.  It is ideal for metal erection, setting wooden trusses, putting up post frame buildings and many more crane type jobs.
Faster and more Maneuverable...
Take advantage of the speed and maneuverability of RT Extendable Reach Forklifts to increase production on low rise crane type jobs.  A Star "QT" Truss Boom and
your forklift, even on rough and muddy jobsites, will get the job done faster and at less cost.
Rugged Construction to Protect Against
Damage...

On or off the forklift, the fully welded, square tube construction of Star QT Truss Booms ensure strength and durability.  It's a truss boom that is built to last!

Forklift Truss Boom

Need a Safe and Secure Method of Picking Heavy Suspended Loads with a telehandler?
The old method of wrapping a chain around a fork to pick suspended loads is not only dangerous but a blatant violation of OSHA requirements.  The new Star Model 1302 Two-Foot Truss Boom provides a method of handling suspended loads up to the full capacity of most telehandlers and doing it in a way that is compatible with OSHA and ANSI requirements.  And, most importantly, doing it safely.

The model 1302 Quick-Tach Truss Boom provides a swivel hook for straps or slings at the standard 2-foot forklift load center with a capacity of up to 10000 lbs.  Supplied with a quick-tach mounting to fit the specific make and model of forklift used, the model 1302 provides a strong secure method of attachment to the forklift.  In addition, it is designed to sit upright when disconnected ready to be easily reconnected when needed again.  The model 1302 is available to fit most makes and models of extendible reach forklift /telehandlers.

Telehandler Truss Boom












Model 1302

New 2 Ft. Model


12 ft Boom

Forklift Attachment

15 ft Boom

Low Profile Boom
Style
Model
"A"
Effective
Length
"B"
Back
Height
"C"
Back
Width
Load
Capacity
Empty
Weight
Overall
Length
Price
Low Profile
Truss Boom
1302
2'
26.5"
31"
10,000 lbs.
335 lbs.
2' - 0"
$1,550
1310
10' - 0"
26.5"
31"
2,000 lbs.
525 lbs.
10' - 5"
$1,690

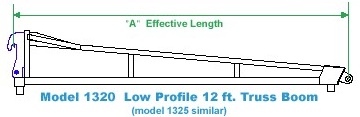

1320
11' - 8"
26.5"
31"
2,000 lbs.
535 lbs.
12' - 0"
$1,790

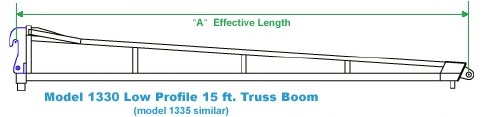

1330
15' - 0"
26.5"
31"
2,000 lbs.
680 lbs.
15' - 5"
1,990

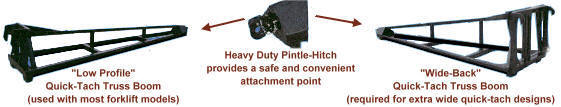

The standard "Low Profile" Truss Boom is used with most forklift models except those that utilize an extra wide quick-tach design.

Please Note:  Dimensions and empty weights will vary depending on which quick-tach is required.

Wide Back Boom
Style Model "A"
Effective
Length
"B"
Back
Height
"C"
Back
Width
Load
Capacity
Empty
Weight
Overall
Length
Price
Wide Back
Truss Boom
1325 11' - 11" 36" 45" 2,000 lbs. 720 lbs. 12' - 4"
$1,965
1335 14' - 11" 36" 45" 2,000 lbs. 805 lbs. 15' - 4"
$2,175
Note:  JCB Q-Fit and Gehl Dynacarrier quick-tach designs require the "Wide Back"

Note: Forklift make, model, quick-tach style and serial number may be required when ordering.

CAUTION:  Above load ratings are for the truss boom only and do not reflect actual forklift load capabilities.



No quick-tach on your forklift???
NO PROBLEM!!!

See our Universal Fit (slip on the forks)
